Thymis Modules
Thymis modules are the building blocks of device configurations, allowing you to define how your devices should be configured and what software they should run. Each module provides a set of settings and configurations that can be applied to devices or tags, enabling you to create reusable and shareable device configurations.
Built-in Modules
Thymis comes with several built-in modules that cover common use cases for IoT device management.
Core Device Configuration
The Core Device Configuration module provides essential settings for all Thymis-managed devices. This module is required for every device configuration and includes:
- System settings: Hostname, timezone, and locale configuration
- Network configuration: WiFi settings, static IP configuration, and DNS settings
- User management: Configuration for the default user account
- Security settings: SSH access configuration and password policies
- System services: Configuration for essential system services
This module must be added to every device configuration and cannot be removed. It provides the foundation upon which other modules build their configurations.
Kiosk
The Kiosk module is designed for devices that need to run a single application in fullscreen mode, such as digital signage or information displays. It includes:
- Display settings: Configuration for screen resolution and orientation
- Window manager: Pre-configured i3 window manager optimized for kiosk mode
- VNC server: Optional remote access for monitoring and control
The Kiosk module is ideal for devices that need to run a single application without user intervention or additional desktop interfaces.

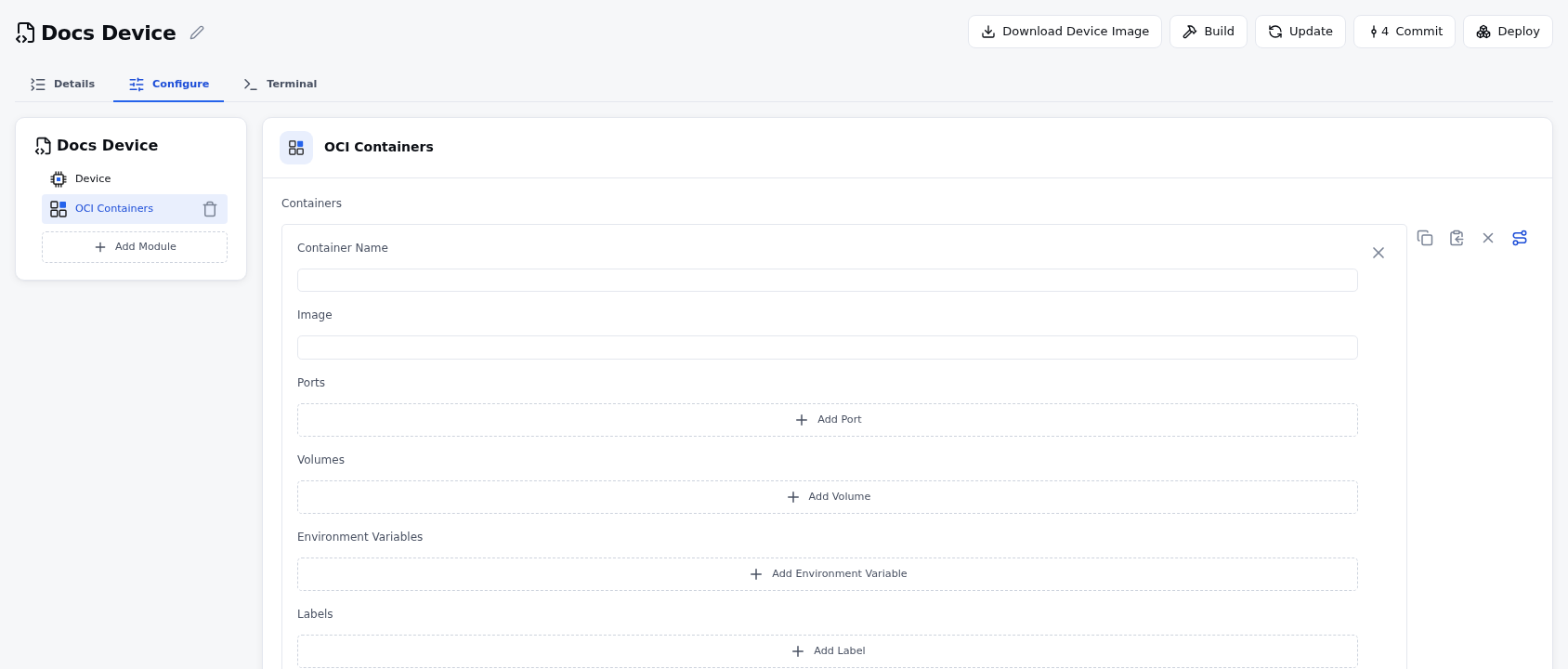

OCI-Containers
The OCI-Containers module allows you to deploy and manage containerized applications on your devices. It includes:
- Docker integration: Configuration for Docker daemon and container management
- Container deployment: Definition of containers to run on the device
- Network configuration: Container networking options and port mappings
- Storage management: Volume configuration and persistent storage options
This module enables you to run isolated applications in containers, simplifying application deployment and dependency management.

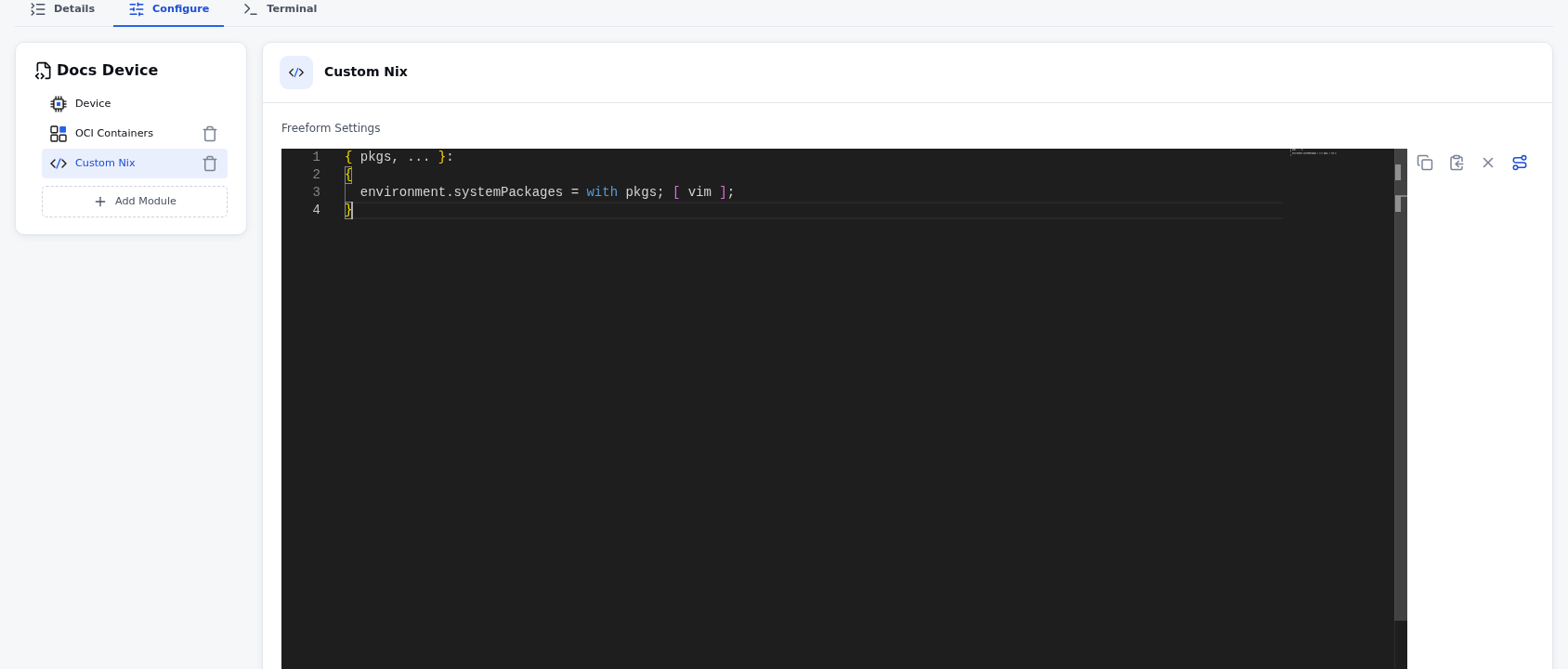

Custom Nix Module
The Custom Nix Module provides advanced users with the ability to write custom NixOS configuration directly in the Thymis UI. This module is ideal for:
- Advanced configuration: Settings not available through other modules
- Custom package management: Installing specific packages not available in the module system
- System service configuration: Defining custom systemd services
- Hardware-specific settings: Configuration for specialized hardware
The Custom Nix Module accepts raw Nix expressions that are included directly in the device’s NixOS configuration, giving you full control over your device’s configuration.
Creating Custom Modules
In addition to the built-in modules, you can create your own custom modules to suit your specific needs. Custom modules can be written in Python or Nix and can include:
- Custom settings: Define your own configuration options
- Application deployment: Package and deploy your own applications
- Hardware integration: Configure specialized hardware
- Service management: Define and manage custom services
For more information on creating custom modules, see Creating your first Thymis module.
Module Priority and Inheritance
When multiple modules are applied to a device, their configurations are merged based on a priority system:
- Device-specific configurations have the highest priority
- Tag configurations have medium priority
- Module defaults have the lowest priority
This priority system ensures that device-specific settings can override tag settings, which can in turn override module defaults.
