Deploying Secrets to devices

This guide explains how to create, manage, and deploy secrets to your devices using Thymis.

Creating Secrets

You can create secrets in two ways:

1. Through the dedicated Secrets page
2. Directly in configuration forms when needed

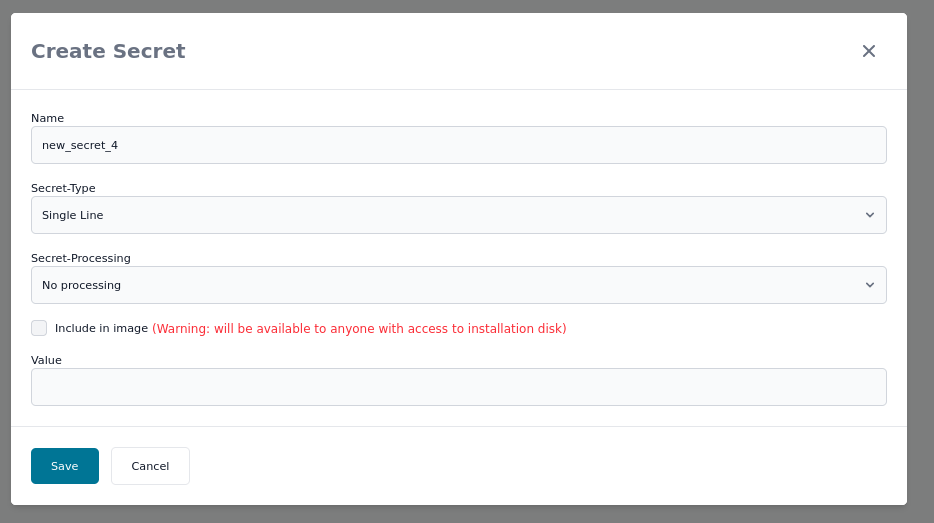

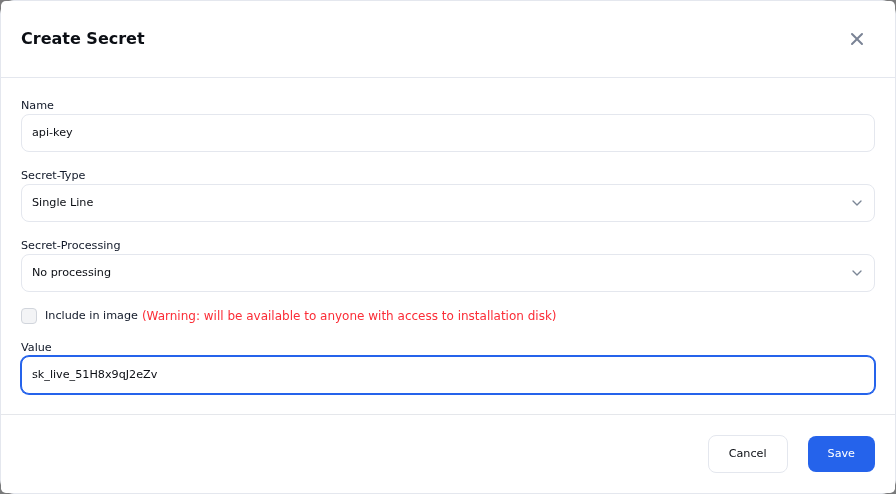

To create a secret through the Secrets page:

1. Navigate to the Secrets page in the sidebar
2. Click the Create Secret button
3. Fill in the secret details:
   • Name: A descriptive name for the secret
   • Type: Choose from single-line, multi-line, environment variables, or files
   • Post-processing: Select appropriate processing (None or mkpasswd-yescrypt for passwords)
   • Content: Enter the secret value
4. Click Save

Using Secrets in Configurations

To use secrets in your device configurations:

1. Navigate to the Configs page
2. Select a device configuration or create a new one
3. Add the Core Device Configuration module to your configuration
4. In the module’s settings, find the Secrets section
5. Click Add Secret
6. Select the secret you want to use and specify where it should be deployed on the device

Using Secrets with Tags

To share secrets across multiple devices:

1. Navigate to the Config-Tags page
2. Click Create Tag
3. Add the Core Device Configuration module to the tag
4. In the module’s settings, add secrets as described above
5. Apply the tag to device configurations that need these secrets

Secret Types and Use Cases

Single-line Secrets

• Use case: API keys, simple passwords, tokens
• Example: api-key = "abcd1234"

Multi-line Secrets

• Use case: Private keys, certificates, configuration files
• Example:
  Copy

  -----BEGIN PRIVATE KEY-----
  MIIEvgIBADANBgkqhkiG9w0BAQEFAASCBKgw...
  -----END PRIVATE KEY-----

Environment Variables

• Use case: Application configuration with environment variables
• Example:
  Copy

  DB_PASSWORD=mysecretpassword
  API_TOKEN=abcd1234

Files

• Use case: Storing certificates, custom configuration files
• Example: Deploying a certificate file at /run/secrets/cert.pem

Post-processing Options

None

Use this for secrets that don’t need additional processing, such as API keys or tokens.

mkpasswd-yescrypt

Use this for passwords to transform them into secure hashes. This is especially useful when you need to set user passwords.

Deploying Secrets to Devices

Once you’ve configured secrets for your devices:

1. Click Commit in the toolbar to save your changes
2. Click Build to verify the configuration builds successfully
3. Click Deploy and select the devices or tags you want to deploy to
4. Thymis will securely deploy the secrets to the specified locations on your devices

Security Considerations

• When including secrets in device images, they’re encrypted with a symmetric key during image creation and then re-encrypted per device
• Regularly review which devices have access to which secrets
• Consider using different secrets for different environments or device types

Troubleshooting

If secrets aren’t deployed correctly:

1. Check that the secret exists and is correctly configured
2. Verify the deployment path exists and has appropriate permissions
3. Check the logs in the Tasks view for error messages
4. Use the terminal to verify secret deployment:
   • Check if secrets are properly decrypted at their specified paths using cat /run/your-secret-path
   • Verify permissions and ownership of secret files
   • Monitor system logs for any secret-related errors
